Jack MC4 30A 1000V

Mã sản phẩm: MC4

Bảo Hành: 12 tháng

Tình trạng: Còn hàng

Giá cũ: Liên hệ

Giá mới: Liên hệ

Mô tả sản phẩm:

Chọn nhãn

Mr Thuyết:: 0978217627
Kinh doanh 1: 0338050101
Kinh doanh 2: 0338050202

HOTLINE: 0978 217 627

EMAIL: duongquangthuyet@gmail.com

THÔNG TIN SẢN PHẨM

THÔNG SỐ KỸ THUẬT

ĐẦU NỐI NĂNG LƯỢNG MẶT TRỜI MC4

Gia công tại chỗ đơn giản.

Phù hợp với cáp quang có đường kính cách điện khác nhau.

Vỏ bảo vệ an toàn nhờ khóa chốt.

Nhiều chu kỳ cắm và rút phích cắm.

Khả năng chịu dòng điện cao.

Được chứng nhận bởi TUV và UL.

Về trang trước Lên đầu trang

Gửi email In trang

SOLAR CONNECTOR Feature:

Simple on-site processing. Acomodates PV cable with different insulation diameters. Mating safety provided bykeyed housings. Multiple plugging and unplugging cycles . High current carrying capacity. TUV and UL approved.

SOLAR CONNECTOR Specification:

Item	SOLAR CONNECTOR
Model Number	WSPVCC
Test Voltage	1000V DC
Overvoltage Type/Pollution Degree	6000V(50Hz, 1min)
Contact Resistance Of Plug Connector	CAT III /2
Contact Resistance Of Plug Connector	ImΩ
Contact Material	Copper, Tin-plated
Insulation Material	PPO
Degree Of Protection	IP2X/IP67
Flame Class	UL94-VO
Safety Class	II
Suitable Cable	OD 4.5-8.5(2.5-6.0mm2)
Insertion Force/Withdrawal Force	≤ 50N/ ≥ 50N
Connecting System	Crimp connection
Temperature Range	-40℃ ~ +125℃

Detailed Images

IP67 waterproof rating: key to the stability of solar connectors

Paragraph: IP67 waterproof and dustproof performance is crucial for outdoor solar connectors. It effectively resists the intrusion of rain, dust, and temporary immersion, ensuring that the power connection is secure in any inclement weather. This guarantees the long-term, efficient, and stable operation of the entire photovoltaic system and minimizes maintenance costs caused by connector failure. Our products are designed and tested in strict accordance with IP67 standards, providing you with absolutely reliable waterproof protection.

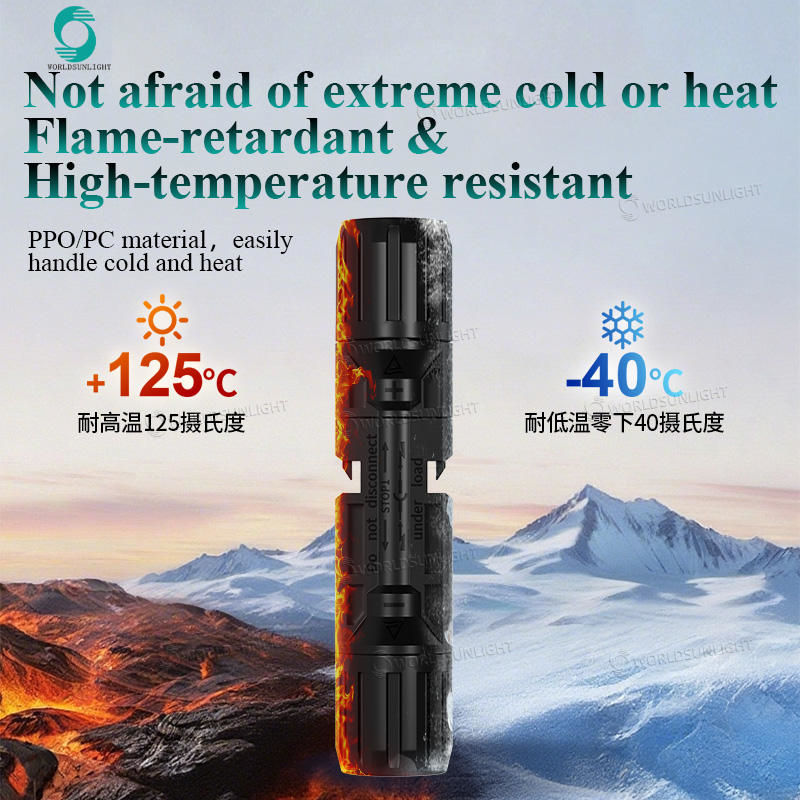

Excellent weather resistance: no fear of extreme temperature differences, ensuring the stability of the photovoltaic system all year round

Photovoltaic connectors are exposed to the elements outdoors for extended periods, subjecting them to extreme temperature fluctuations. Excellent low-temperature resistance (e.g., -40°C to +85°C or even wider) effectively prevents aging, embrittlement, or deformation of connector materials due to thermal expansion and contraction, eliminating the risk of increased contact resistance, ignition, or even system power outages. Our products utilize top-quality materials and precision craftsmanship, and undergo rigorous environmental testing. Their high-temperature resistance far exceeds industry standards, ensuring reliable power flow in both extreme cold and extreme heat.

Rock-solid and safe: V0 flame retardancy and robustness provide connectors with double protection

Mechanical stress and potential electrical fire risks in outdoor environments pose significant threats to photovoltaic systems. Connectors must possess exceptional mechanical robustness to withstand pulling, pressure, and the impact of harsh weather, ensuring a permanent and reliable physical connection. Furthermore, their V0 flame retardancy effectively prevents the spread of flames in extreme conditions, providing a core line of defense for protecting power plant property and personnel. Our products utilize high-strength engineering materials and innovative structural design, resulting in a robust design and UL94 V-0 certification. These products are designed to eliminate potential safety hazards and provide comprehensive protection for your power plant, from structural to safety.

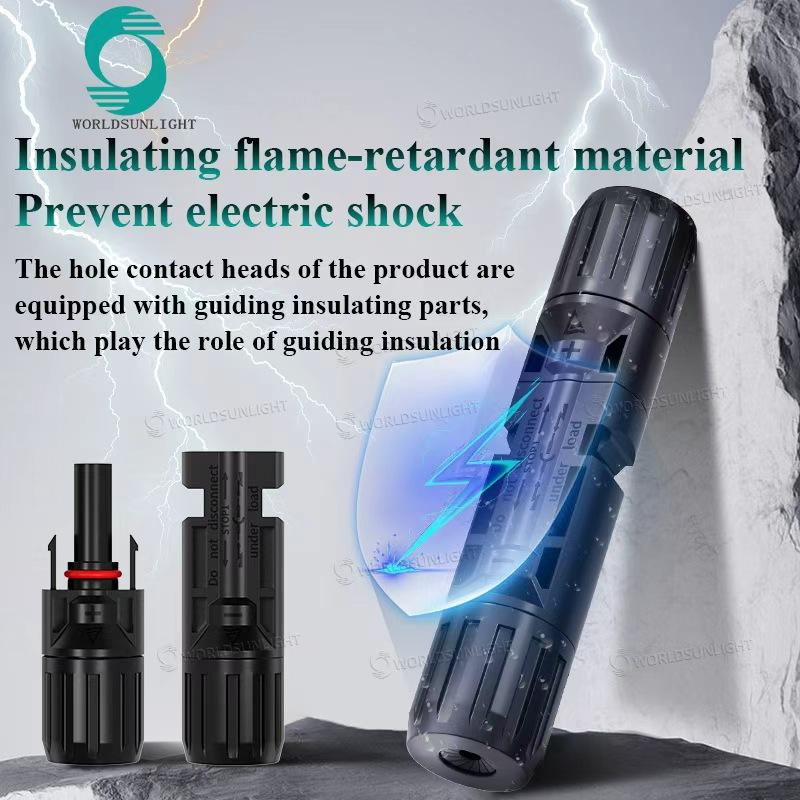

Insulation barrier: the first line of defense for the safe operation of photovoltaic systems

Excellent insulation performance is fundamental to photovoltaic system safety. It effectively prevents current leakage and short-circuit accidents in harsh environments with high voltage and high humidity, ensuring personal safety, system efficiency loss, and equipment fire risks. Our products utilize high-performance insulation materials, undergo precise design and rigorous testing, and their electrical insulation strength and insulation resistance far exceed industry safety standards, providing a reliable safety barrier and ensuring the safe and stable operation of your power station throughout its lifecycle.

Extremely low resistance: Maximizing energy output and benefits of photovoltaic power plants

Contact resistance is a core performance metric for connectors and directly determines the system's power generation efficiency. A resistance below 0.5mΩ significantly reduces energy loss and heat accumulation during current transmission, thereby increasing overall system output power and eliminating safety risks associated with overheating. Our products utilize superior conductive materials and crimping technology to achieve a remarkably low contact resistance of 0.24mΩ, far exceeding the highest industry standards. This ensures that every kilowatt-hour of power in your photovoltaic system is utilized effectively, maximizing your returns.

Zero defect commitment: Full-process quality inspection ensures that every connector meets the standards

When it comes to quality, there's no room for luck. We've established a digital, full-process quality control system, encompassing raw materials, production, and final factory inspection. High-precision instruments test key parameters such as insertion and extraction force, contact resistance (0.24mΩ), IP67 sealing, and V0 flame retardancy, generating traceable data records. This ensures that every connector delivered to you performs consistently and meets pre-set, cutting-edge technical standards, providing a solid, digital foundation for 25 years of safe and stable operation of your power station.
